How to test solenoids?
The quality of the solenoid mainly depends on two aspects, one is the coil and the other is the valve body, so the test mainly tests these two aspects.
- If the solenoid is energized, unplug it and use a multimeter to measure whether there is electricity.
- The solenoid is energized with a thin steel wire close to the coil to see if there is suction.
- solenoid power - power off repeatedly try, to use a very thin hex wrench to poke the solenoid axis of the brass "small pit" to see if it can suck and pop out.
Materials required for testing solenoids
Multimeter, several thin steel wire, very thin hex wrench.
The principle of testing solenoids
First give the solenoid on the controlled medium (liquid, gas (air) with pressure, the pressure value is the middle value of the pressure range used by the solenoid, and then give the solenoid coil power, if the controlled medium has a change from the through to the break or from the break to the state, then the solenoid is good, otherwise there is a problem.
Test solenoids fault
- coil short circuit or break
Fault phenomenon

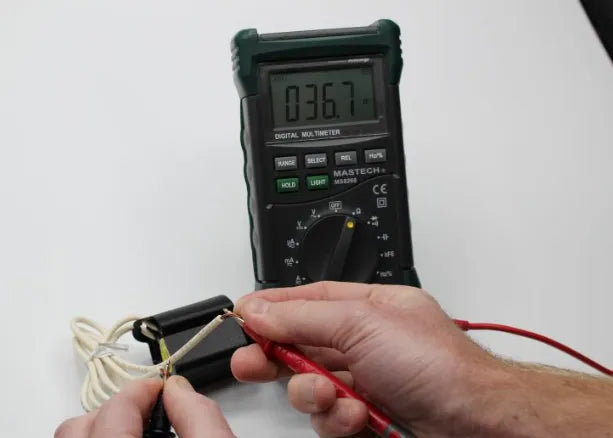

First, use a multimeter to measure its on-off, and the resistance value approaches zero or infinity, which indicates that the coil is short-circuited or broken. If the resistance value measured is normal, it does not mean that the coil must be good. Perform the following final test: Find a small screwdriver and place it near the metal rod that is threaded through the solenoid coil. Then apply electricity to the solenoid. If it feels magnetic, the solenoid coil is good, otherwise, it is bad.
Treatment method
Replace the solenoid coil
- plug or socket problem
Fault phenomenon
If the solenoid is a plug or socket, there may be a metal spring problem of the socket, a wiring problem on the plug, such as connecting the power cord to the ground wire, and other reasons that the power supply cannot be sent to the coil.
So it is best to develop a habit of putting the screw on the socket after the plug is inserted, and the nut on the coil after the spool rod.
If the plug of the solenoid coil is equipped with an LED power indicator, then the use of DC power to drive the solenoid should be connected correctly, otherwise, the indicator will not light. In addition, do not replace the power plug with the light-emitting diode power indicator of different voltage levels, which will lead to the light-emitting diode being burned, the power supply being short-circuited or the light-emitting diode being very weak.
If there is no power indicator, the solenoid coil does not need to distinguish polarity.
Treatment method
Correct wiring errors, repair or replace plugs and sockets
- Valve core problem
Fault phenomenon,In the case of normal pressure of the medium through the solenoid, press the red manual button of the solenoid, the solenoid does not have any reaction, and the pressure medium does not change on or off, indicating that the spool must be bad.
Treatment method: Check whether there is a problem in the medium, such as whether there is a lot of water in the compressed air, or whether the liquid medium has a lot of impurities, remove the water or impurities in the solenoid and pipeline. If not, please repair or replace the spool, or simply replace the entire solenoid.
After inspection, the coil is the original coil, and the coil is powered on when the magnetic normal, but the solenoid still does not operate, then the function of the manual button of the solenoid may be normal, indicating that the spool is bad.
Treatment: Please repair or replace the spool, or simply replace the entire solenoid.
We offer solenoids with OEM quality and widen usage.
We provide 1 year warranty and hassle refunds.
What should you Pay attention to when purchasing soleniods
1.Type,2-way,3-way or 4-way
2.Operation ,Is it normally open (N/O), normally closed (N/C) or universal (U) operation?
3.Pressure
4.What is the voltage.
Application:Deutz 1011series Engines,Bobcat Compact Loader 863 864,Perkins Engine 400 Series,ShibauraTractor ST450,Woodward 2000 Series,Woodward 1500 Series,KubotaV2203,Kubota V2203,Case 560......
The conclusion about how to test solenoids: The quality of the solenoid is mainly the detection coil and valve body, you can refer to the above methods for detection, if you have doubts about how to detect the solenoid, you can contact us, and we can provide you with professional answers and products.
